170/160mm travel, 750wh battery and mullet set up. Designed and engineered in Barcelona.
170/160mm travel, 750wh battery and mullet set up. Designed and engineered in Barcelona.
Unno Bicycles

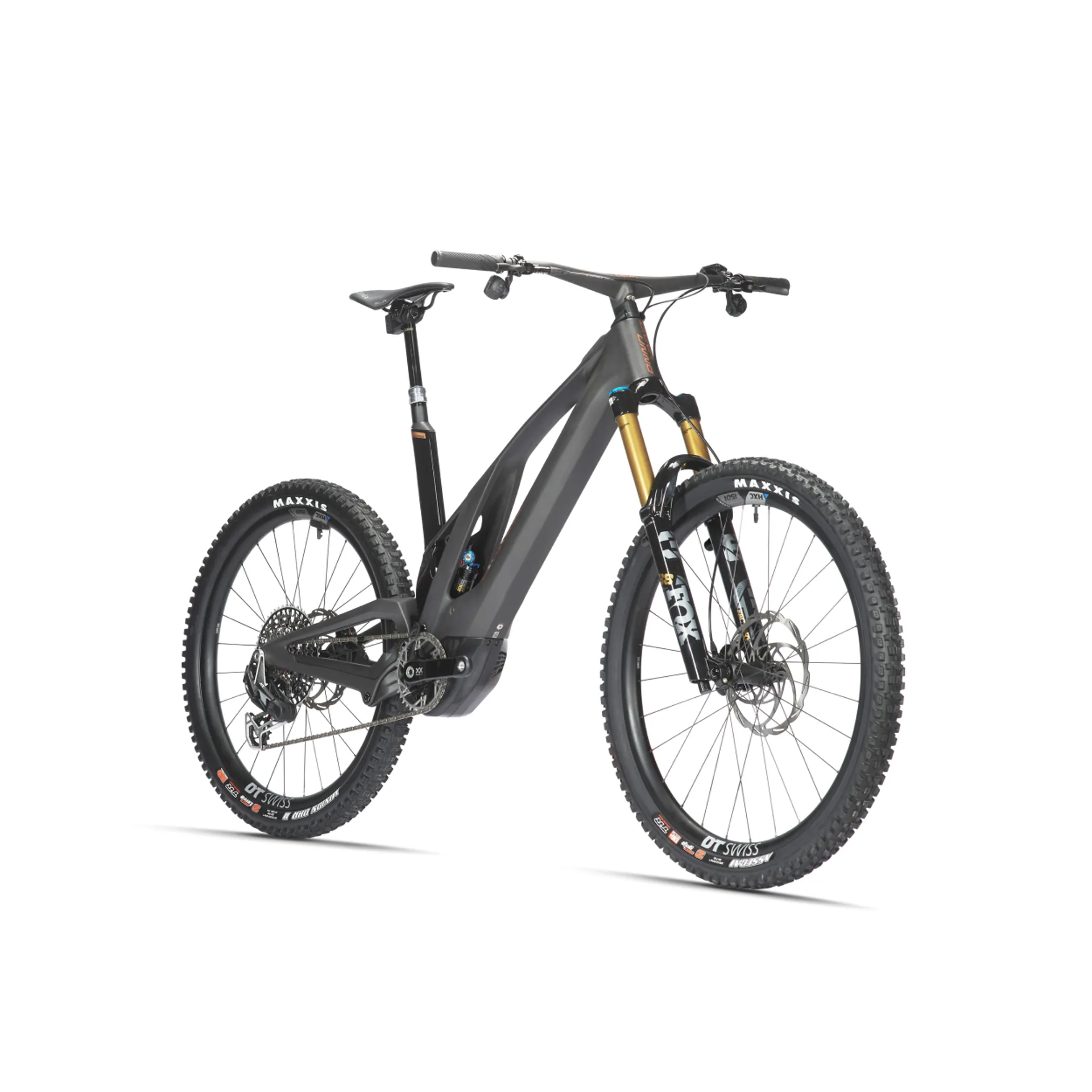

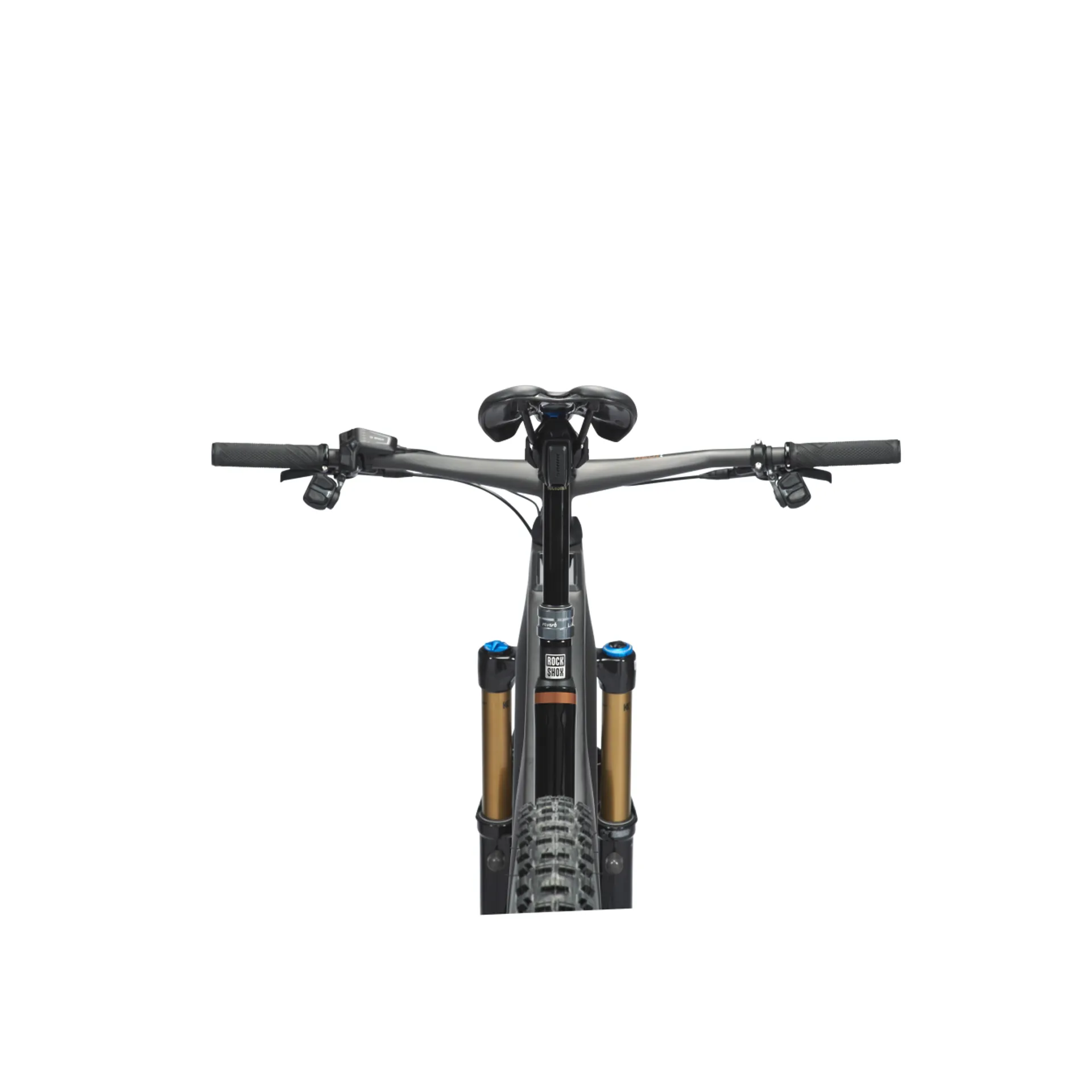

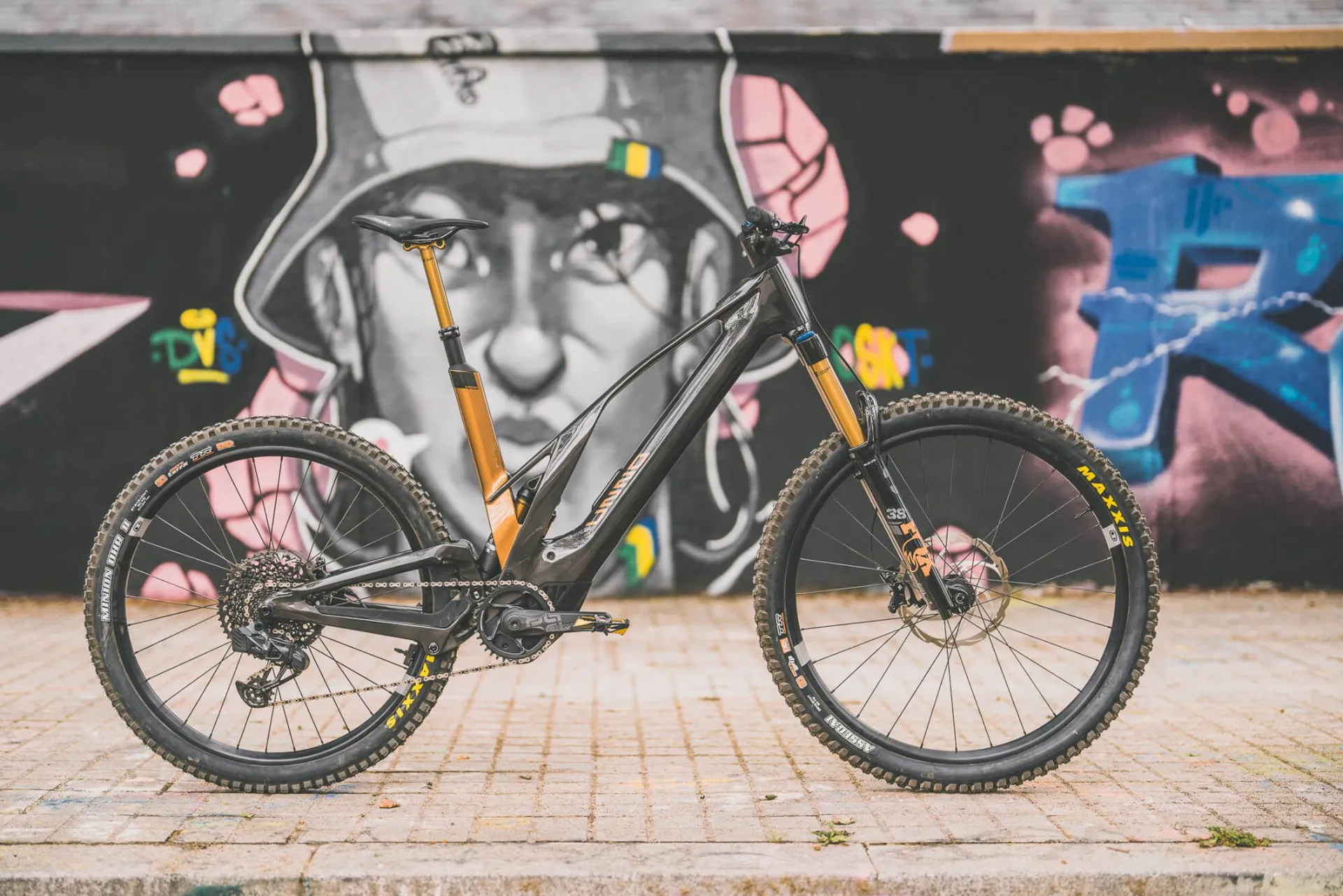

Unno Mith Factory - Full Suspension eMTB 2024

£13,595.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Returns policy

Please read and fully understand this policy before returning goods to us. With exception of Warranty Claims, Faulty or Damaged goods (See terms below), we can only accept a return on an item if it is completely unused and in its original condition.

  1. Please pack the item carefully in its original packaging.
  2. Submit a returns form using the retuns form at the bottom of the page.
  3. Fully complete the returns slip and include it in the package.
  4. Send the parcel on a through postal/courier service to the returns address.

Returns Address

Bike Bros. Returns
23-25 Woodbridge Hill
Guildford, Surrey
GU2 9AA

Returns & Exchanges Policy Summary

We offer a 30 day returns period from the date of receipt.

Distance Selling
In addition to our Returns Policy, under the Consumer Contracts Regulations, you have the right to cancel your order up to 14 days from the day you receive your goods if you are an online, mail or telephone order customer. You then have a further 14 days from the date you notify the retailer of your cancellation to return the goods.

Faulty Goods:
Under the Consumer Rights Act you have an early right to reject goods that are unsatisfactory quality, unfit for purpose or not as described, and get a full refund. But this right is limited to 30 days from the date you took ownership of the goods (this could be the date of purchase or the date the goods were delivered to you - whichever is later).

It is your responsibility to ensure that the item is returned to us in a safe and secure manner, we suggest that you use a recorded postal/courier service. Please ensure that the service you use covers the value of the goods in the parcel.

We are unable to accept returns where the goods or packaging has been used, lost, damaged or is otherwise not in the condition you received it in. Bikes must be returned in a securely packaged bike box.

If you would like us to arrange a collection via courier, then we can do so at a cost of £50. Should you fail to be present for an arranged collection, you will be charged £20 to rebook.

We will refund up to £10 for private postage of faulty or damaged items.

If you would like to exchange an item, we will happily send out a replacement product once the original has been returned.

Refunds will be made to the original payment method - this may take up to 10 days to appear depending on the method of payment. Initial shipping costs are non-refundable.

We are unable to offer a refund without proof of purchase.

We cannot accept returns without a completed returns form.

Signing for delivery receipt of items that have clearly been damaged by the courier is the responsibility of the receiver.

Items that are damaged during a return as a result of inadequate packaging will be declined and returned to you, or charged for.

Several types of goods are exempt from being returned. Perishable goods cannot be returned. We also do not accept products that are intimate or sanitary goods, hazardous materials, or flammable liquids or gases.

Additional non-returnable items:
* Gift cards
* Downloadable software products
* Some health and personal care items

Faulty Goods and Warranties

If the item that has been received is faulty, damaged, or not as described then we will cover the cost of return postage (up to £10) and offer a refund or exchange. In these instances, we would always recommend using our own shipping services.

Important information to note about returning faulty, damaged, or not as described items:

Bike Bros. issue no warranties, all warranties are issued by manufacturers. For this reason, we may need to send your goods to the manufacturer for inspection before taking any action. Please see the relevant manufacturer's website for full warranty information.

Only products that are faulty, damaged or not as described by us are eligible for returns/exchanges. If damage has been caused through wear and tear, improper care, or some other factor beyond our control then it will not be covered.

Once a faulty item has been used, or if the packaging has been damaged it can still be returned to us, however we - and the manufacturer - reserve the right to offer a repair, replacement, or partial refund.

Remember it is your responsibility to ensure that returned items are packaged appropriately - any damage caused in transit [as a result of inadequate packaging] will be chargeable.

We cannot accept any cycle warranty claim or return for incorrect pedal fitment or damage to crank arms caused by incorrect pedal fitment.

If the wheels on the bike you've ordered become untrue through use, or the gears need readjustment after initial use, this unfortunately not covered under warranty. Every new bike requires a 4-6 weeks check up, this is provided by us free of charge, provided the bike is dropped off and booked in the workshop with us.

Please read and fully understand this policy before returning goods to us. With exception of Warranty Claims, Faulty or Damaged goods (See terms below), we can only accept a return on an item if it is completely unused and in its original condition.

  1. Please pack the item carefully in its original packaging.
  2. Download and Print the returns slip.
  3. Fully complete the returns slip and include it in the package.
  4. Send the parcel on a through postal/courier service to the returns address.

Returns Address

Bike Bros. Returns
23-25 Woodbridge Hill
Guildford, Surrey
GU2 9AA

Returns & Exchanges Policy Summary

We offer a 30 day returns period from the date of receipt.

It is your responsibility to ensure that the item is returned to us in a safe and secure manner, we suggest that you use a recorded postal/courier service. Please ensure that the service you use covers the value of the goods in the parcel.

We are unable to accept returns where the goods or packaging has been used, lost, damaged or is otherwise not in the condition you received it in. Bikes must be returned in a securely packaged bike box.

If you would like us to arrange a collection via courier, then we can do so at a cost of £50. Should you fail to be present for an arranged collection, you will be charged £20 to rebook.

We will refund up to £10 for private postage of faulty or damaged items.

If you would like to exchange an item, we will happily send out a replacement product once the original has been returned.

Refunds will be made to the original payment method - this may take up to 10 days to appear depending on the method of payment. Initial shipping costs are non-refundable.

We are unable to offer a refund without proof of purchase.

We cannot accept returns without a completed returns form.

Signing for delivery receipt of items that have clearly been damaged by the courier is the responsibility of the receiver.

Items that are damaged during a return as a result of inadequate packaging will be declined and returned to you, or charged for.

Several types of goods are exempt from being returned. Perishable goods cannot be returned. We also do not accept products that are intimate or sanitary goods, hazardous materials, or flammable liquids or gases.

Additional non-returnable items:
* Gift cards
* Downloadable software products
* Some health and personal care items


Faulty Goods and Warranties

If the item that has been received is faulty, damaged, or not as described then we will cover the cost of return postage (up to £10) and offer a refund or exchange. In these instances, we would always recommend using our own shipping services.

Important information to note about returning faulty, damaged, or not as described items:

Bike Bros. issue no warranties, all warranties are issued by manufacturers. For this reason, we may need to send your goods to the manufacturer for inspection before taking any action. Please see the relevant manufacturer's website for full warranty information.

Only products that are faulty, damaged or not as described by us are eligible for returns/exchanges. If damage has been caused through wear and tear, improper care, or some other factor beyond our control then it will not be covered.

Once a faulty item has been used, or if the packaging has been damaged it can still be returned to us, however we - and the manufacturer - reserve the right to offer a repair, replacement, or partial refund.

Remember it is your responsibility to ensure that returned items are packaged appropriately - any damage caused in transit [as a result of inadequate packaging] will be chargeable.

We cannot accept any cycle warranty claim or return for incorrect pedal fitment or damage to crank arms caused by incorrect pedal fitment.

If the wheels on the bike you've ordered become untrue through use, or the gears need readjustment after initial use, this unfortunately not covered under warranty. Every new bike requires a 4-6 weeks check up, this is provided by us free of charge, provided the bike is dropped off and booked in the workshop with us.

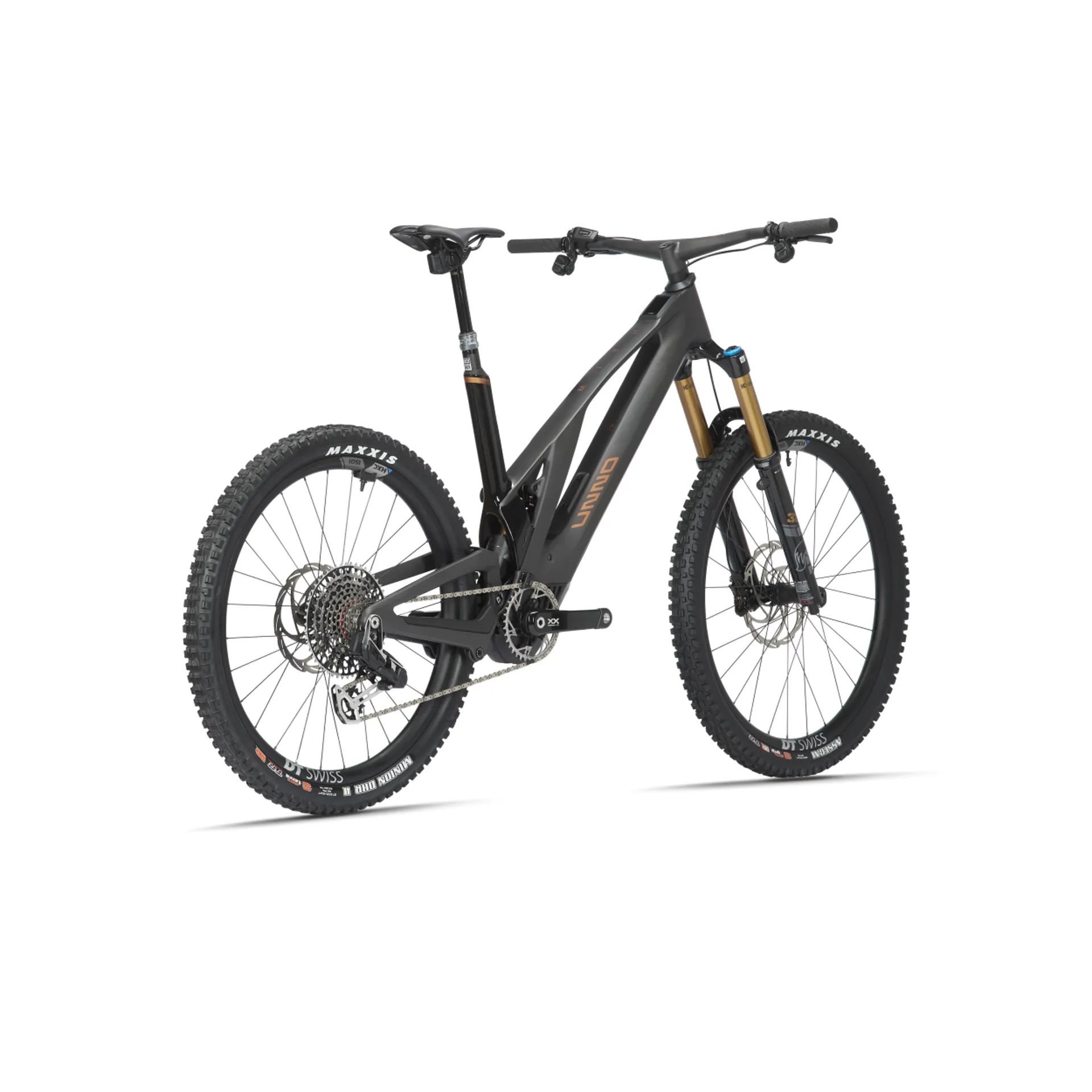

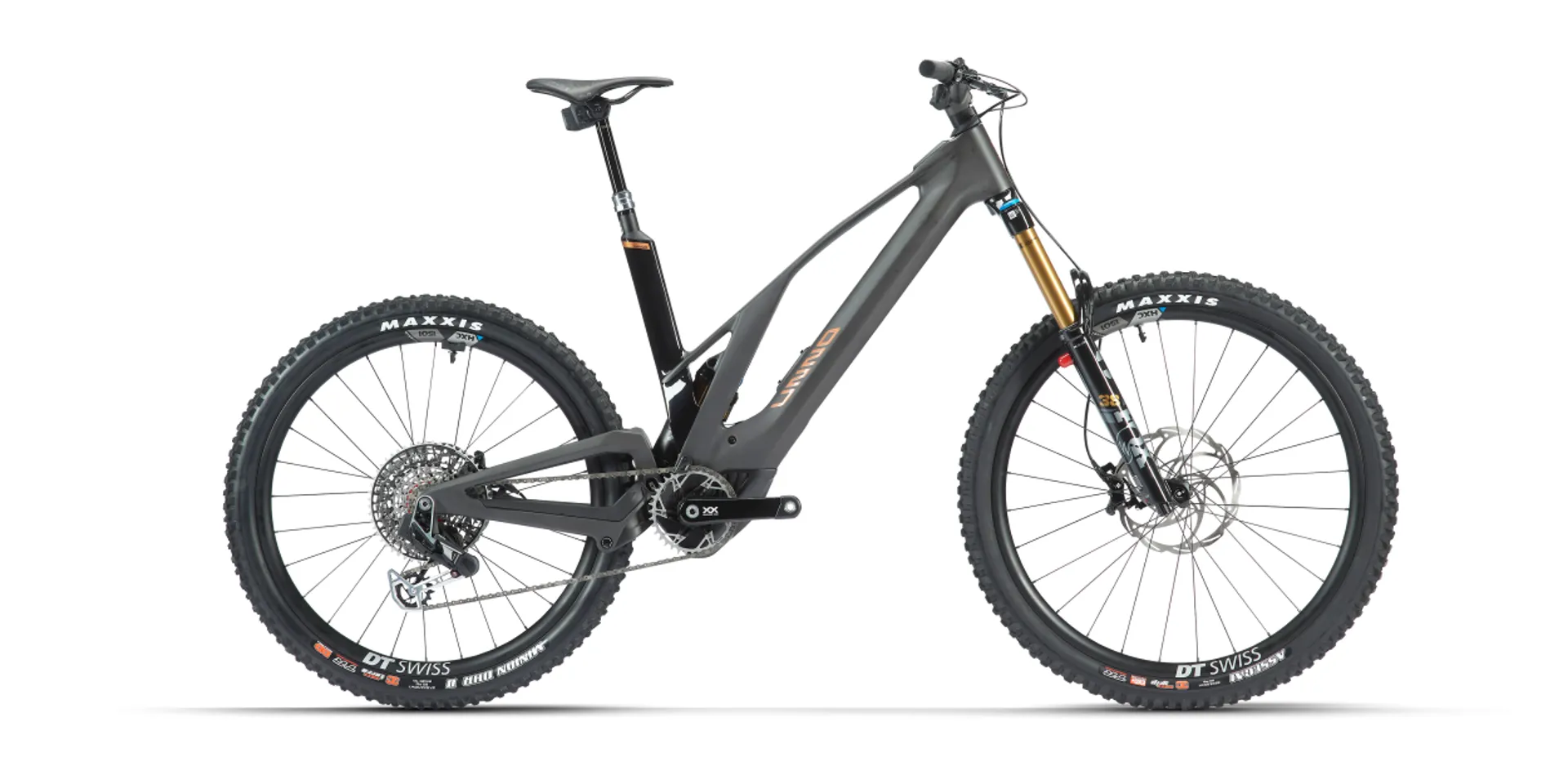

Unno Mith Factory - Full Suspension eMTB 2024

Season:2024

Brand:Unno Bicycles

Code:UNNOMITHFACTORY

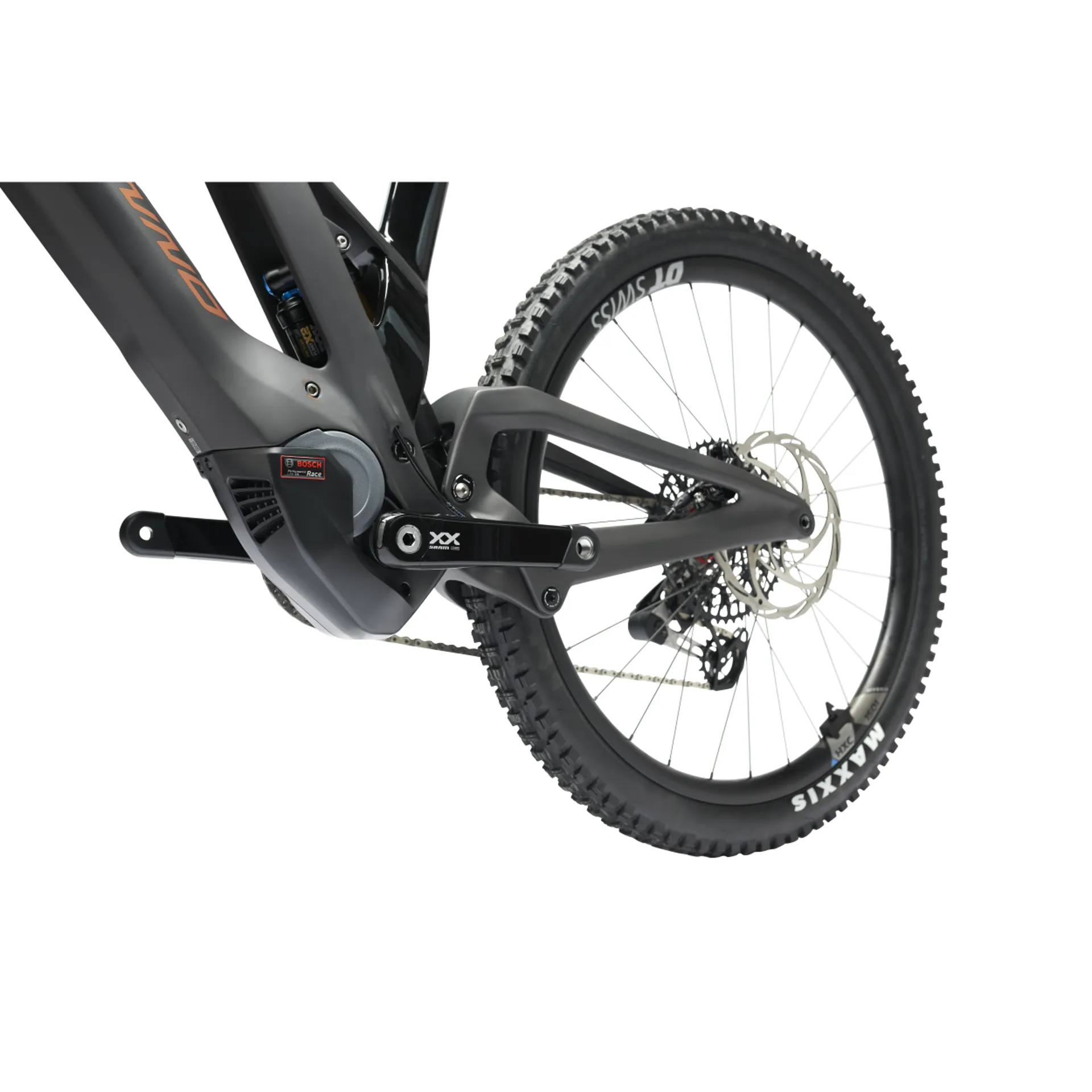

  • Bosch Performance Line Race motor
  • 750Wh battery
  • SRAM XX Eagle AXS 12-speed drive
  • Fox 38 Factory 170mm travel fork
  • Fox Float X2 Factory shock
  • SRAM Reverb AXS dropper post


REAL AUTONOMY. NO COMPROMISES

We wanted it all. Born from our desire for change, we created something that is everything but conventional and ordinary. A bike that's as beautiful to ride as it looks. A platform that deliveres the ultimate riding experience. Rebellion in its purest state.

Endless adventures in the woods or bigger-than-conventional weekday spins racing against the sunset at full gas mode. You decide how you want to spend your 750Wh battery. And, since this is a bike to give it all, we designed our own motor plate.

KINEMATICS

We are suspension system developers. Our e-bike optimised virtual pivot link is specially created to seize every single millimetre of the 160 available. A 35% sag set up is recommended (+/-5%). Use air or coil shocks at your own taste!

SAY YES TO RECYCLED PLASTIC

The global sourcing engine for responsible plastic. At Unno we partenered up with Oceanworks and developed all resin parts of the frame with recycled nylon. Our small grain of sand for a better world.

DESIGNED TO GO ALL OUT

A platform that delivers ultimate stability and fun. An easy to ride bike always willing to press send. Thanks to its double row EnduroMAX bearings, the bike feels stiff and smooth at all times even in the most hardcore terrains. And yup, there was no other way than giving it a disruptive, iconic, Unno-like look!

PIONEERS IN GEOMETRIES

At Unno we've been known for creating unique bikes, but also for being innovative in geos. As it's the first time we do sizes at Unno, we wanted to make them properly. So we jumped to a reach-based S sizing. There’s a fistful of room between you and the bars, so aggressive riding is welcome!
Technical Information

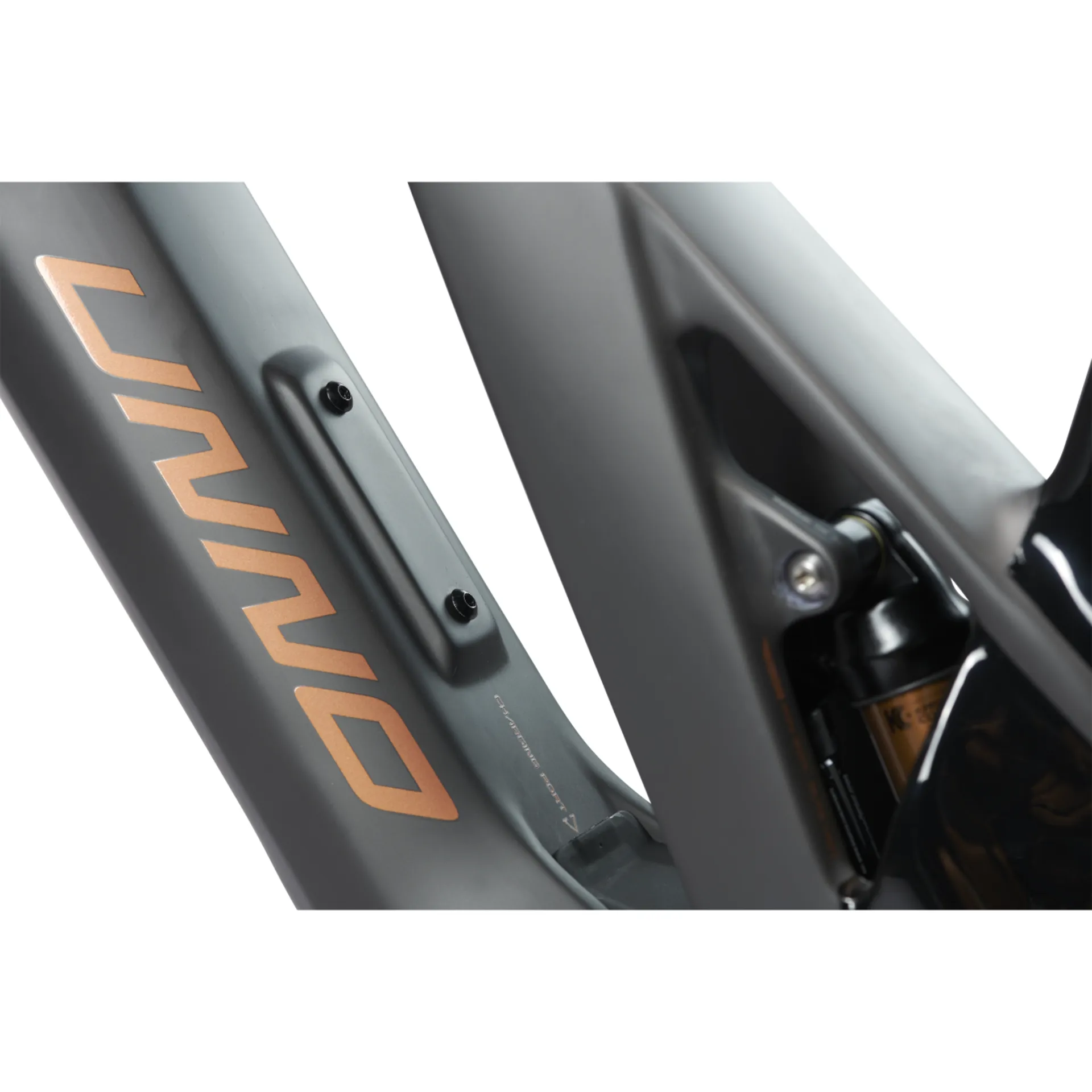

Frame

Carbon fibre monocoque with 160mm of rear travel. Virtual pivot suspension system. Integrated display, battery, chain guide and seat tube clamp. Motor protector. EnduroMAX Bearings. Internal cable routing. Boost thru axle 12x148. Post Mount brake system. Max tire width: 2.6”. Oceanworks recycled plastic parts and rubber protectors. Recommended sag: 35% (+/- 5%).

Rear shock

FOX FLOAT X2 FACTORY, 230x65mm. Kashima Coating. 2-pos lever. VVC Rebound. Adjustments: HSC, LSC, HSR, LSR.

Fork

FOX 38 FACTORY, 170mm travel. Kashima coating. Grip 2 damper. 15x110 axle. Adjustments: HSC, LSC, HSR, LSR. 44mm offset.

Headset
ShiftersSRAM AXS POD ULTIMATE Right bridge. WMMX.
Front derailleurNone

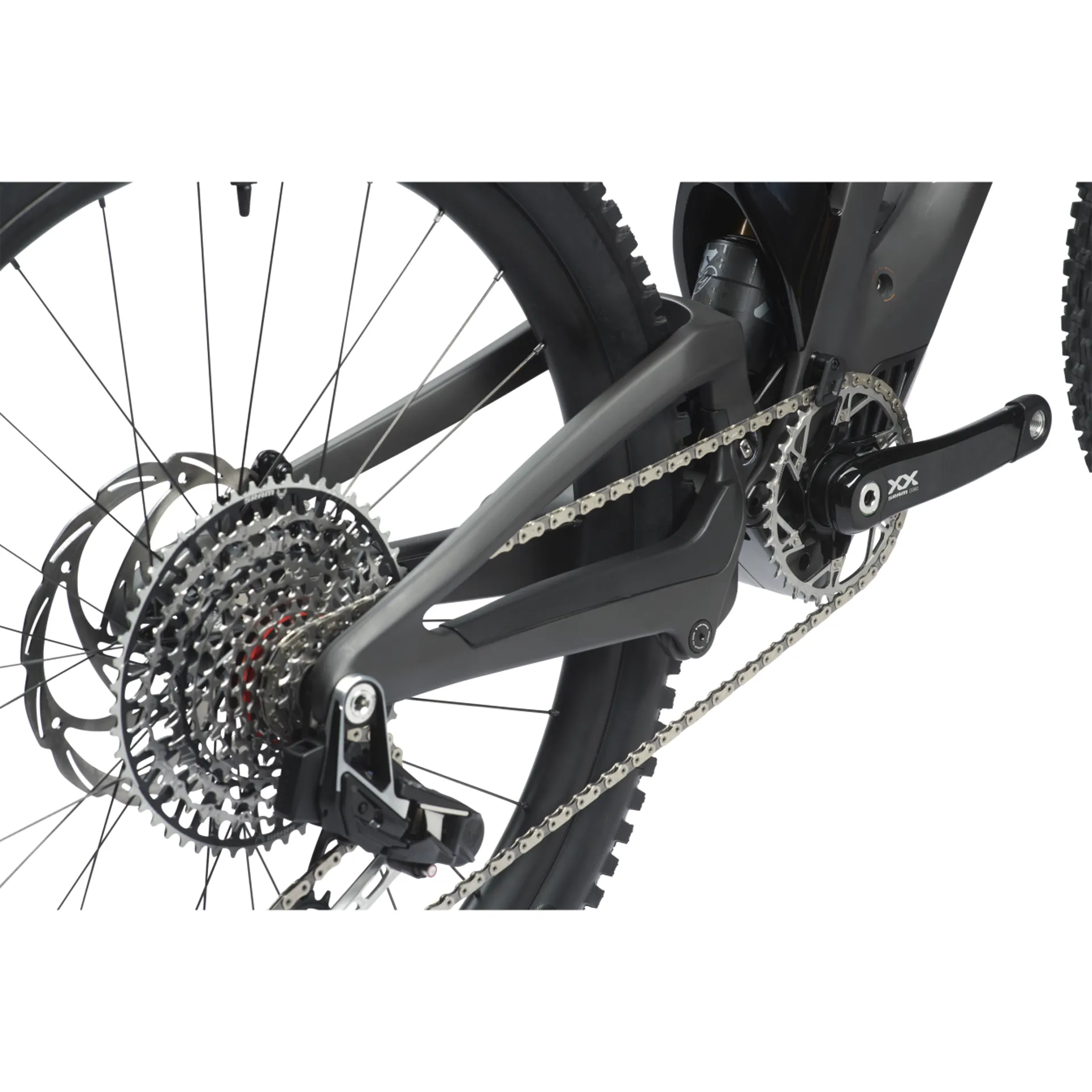

Rear derailleur

SRAM XX AXS, 12-speed Eagle technology. Battery: EP Powerpack 2.

Chainset

SRAM XX, For Bosch Cap ISIS M15 SE. 165mm. With SRAM XX Chainring for Bosch Gen4 36T. T-Type.

Bottom bracket
ChainSRAM XX Eagle 120 links. T-type.
Cassette

SRAM XX, XG 1297. 520% range. 10-52T.

Wheelset

DT SWISS HXC 1501, 29” front and 27,5” rear. XD mount.

Hubs
Spokes
Tyres

MAXXIS ASSEGAI, 29x2.50WT, 3CMaxxGrip, EXO+, TR.

MAXXIS MINION DHR II 27.5x2.40WT, 3CMaxxTerra, DD, TR.
Brakes

FORMULA CURA 4, 4X18mm pistons on caliper. SRAM Matchmaker. Sintered pads. Axial master cylinder.

FORMULA CURA ROTORS, 220mm front and 203mm rear. Extreme lateral stiffness, anti-noise design and anti-vibration technology.

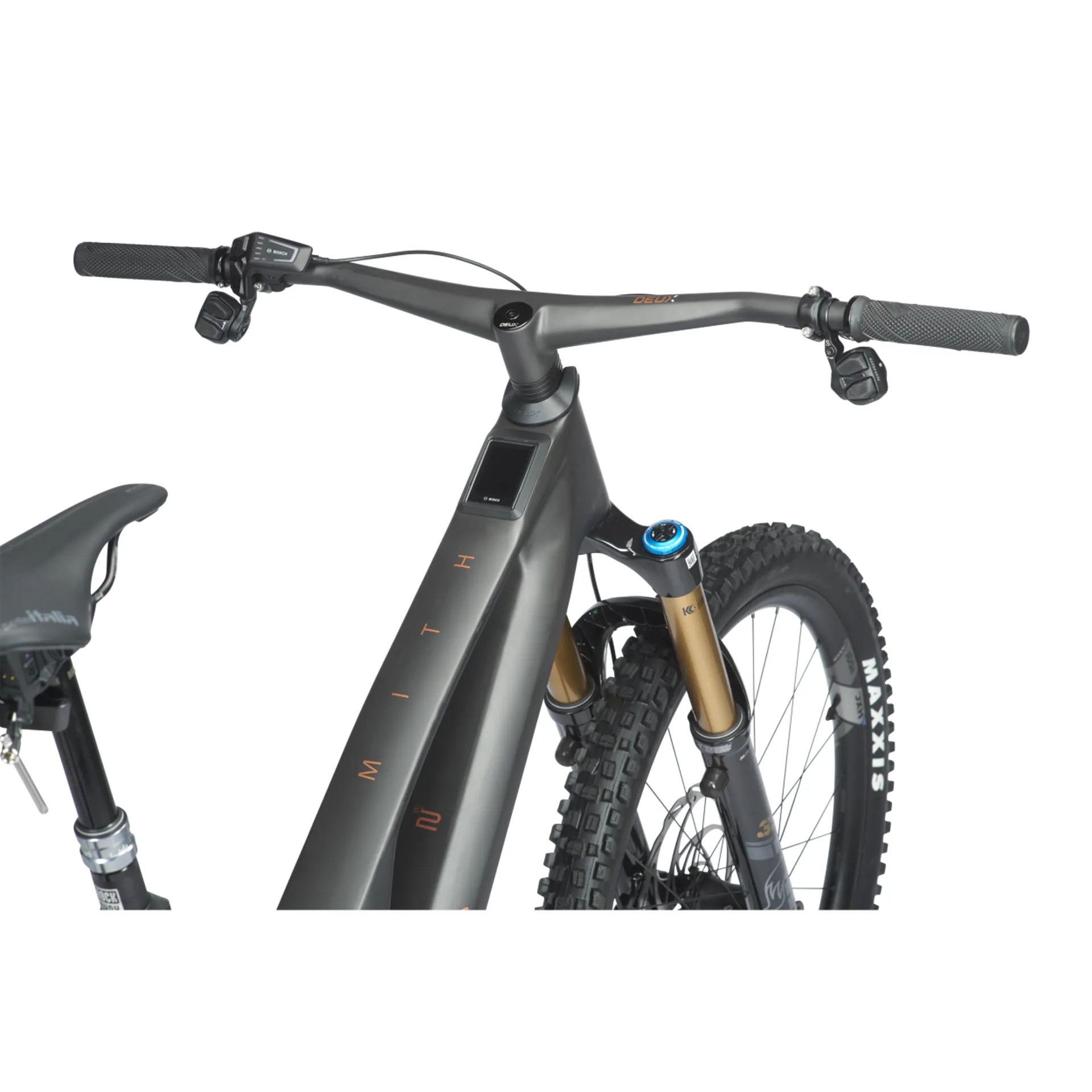

Handlebars

DEUX ENDURO BARS, Integrated bars and stem. No-bolts design. Internal fork tube clamp. 800mm width, 20mm rise, 40mm stem.

Grips
Stem
SaddleSELLE ITALIA SLR BOOST Kit carbon.
Seatpost

SRAM REVERB AXS, With POD trigger. Left bridge. S1: 125 / S2: 150 / S3: 175mm travel.

PedalsNone

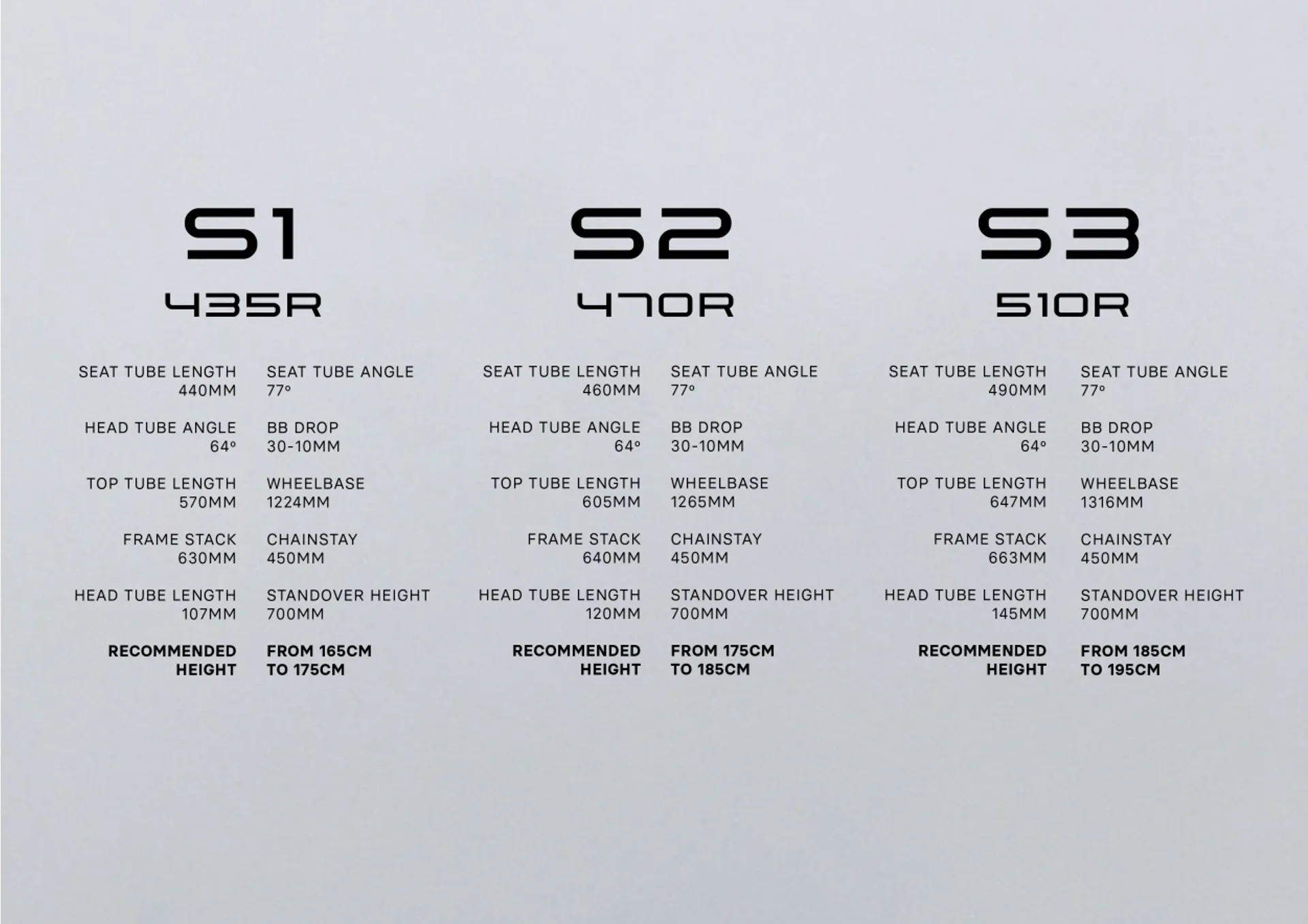

Sizing Information
